HX30 / HX30W 3575205 Cummins Turbo Repair Kit Turbocharger Rebuild Kit Turbocharger Service Kit

Name: HX30 HX30W 3575205 Cummins Turbo Repair Kit Turbocharger Rebuild Kit Turbocharger Service Kit
Brand: TONGLINT
Price: 1 USD

Brand Name : TONGLINT

Model Number : HX30/HX30W

Certification : TS16949

Place of Origin : China

MOQ : 5 pcs

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 20000 pcs/month

Delivery Time : 3 days

Packaging Details : in plastic box then in carton

Product Name : Turbocharger Rebuild Kit

Model : HX30/HX30W

Type : Full kit

Thrust Bearing Material : Copper Bar

Application : Cummins Turbo

Weight : 0.3kg

Contact Now

HX30 / HX30W 3575205 Cummins Turbo Repair Kit Turbocharger Rebuild Kit Turbocharger Service Kit

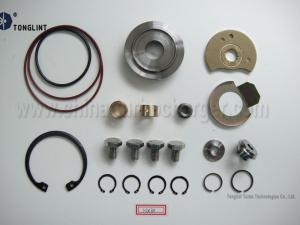

Specifications:

Description	OE Part Number	Qty / Set
Thrust Bearing	3531419	1
Journal Bearing	3503100	2
Piston Ring, T/End	56754	2
Piston Ring, C/End	58848	1
Thrust Flinger	3530924	1
Retaining ring, j/brg	62259	4
Thrust ring	3534451	1
O ring, insert	3528933	1
Insert plate	3530923	1
Shaft nut	3596402	1

This repair kit can be used to repair below turbos:

Model	PART NUMBER	APPLICATION
HX30	2837307	CUMMINS
HX30	3530864	CUMMINS
HX30	3530865	CUMMINS
HX30	3531357	CUMMINS
HX30	3531483	CUMMINS
HX30	3537010	CUMMINS
HX30	3537011	CUMMINS
HX30	3537012	CUMMINS
HX30	3537886	CUMMINS
HX30	3537887	CUMMINS
HX30	3537888	CUMMINS
HX30	3537889	CUMMINS
HX30	3538249	CUMMINS
HX30	3538308	CUMMINS
HX30	3539701	CUMMINS
HX30	3539702	CUMMINS
HX30	3539703	CUMMINS
HX30	3539803	KOMATSU
HX30	3539846	KOMATSU
HX30	3590021	KOMATSU
HX30	3590022	KOMATSU
HX30	3590023	KOMATSU
HX30	3591365	CUMMINS
HX30	3592102	CUMMINS
HX30	3592103	CUMMINS
HX30	3592104	CUMMINS
HX30	3592109	CUMMINS
HX30	3592110	CUMMINS
HX30	3592111	CUMMINS
HX30	3592112	CUMMINS
HX30	3592113	CUMMINS
HX30	4039338
HX30	4040066	CUMMINS
HX30	4040080	CUMMINS

Turbo repair kit, turbo rebuild kit or turbo service kit is one of our dominant turbo products. It is used to maintain or repair complete turbochargers, and plays an important role in engine performance.

Each performance part combined in the turbo kits is selected from different professional manufactories. Tonlint will go through strict inspections by the technicians. Clients in need of our kits are strongly recommended to provide us the famlily turbo model or other specification.

Repair Kit Catalogue

GT Series	H Series	TD Series	RH Series	CT Series	K Series	S Series	Others
GT15-25	4LE/4LF	TD025	RHB5/RHE4	CT9	K03	3LM	KTR110
GT15-25V	4LGK	TF025	RHB7	CT12	K04	S100	KTR130
GT32/35	4LGZ	TD03	RHC6	CT12B	K14/K16	S1A/S1B	ST50/T46
GT37/40	H1B	TF035	RHC7	CT20	K24	S200	T1238
GT42/45	H1C/D/E	TD04	RHE6	CT26	K27	S2A	KTR90
GT45	H2A	TD05	RHE7	1KD	K28	S2B	HP50/JP60
TO4B/TO4E	H2B/C/D/E	TD06	RHF4	2KD	K29	S2E	SJ60
T25/TB25	HT3B	TD07	RHF5	…	K31	S3/S3A	…
T28/TB28	HT10/HT12	TD07S	RHG6		K36/K37	S300
T3/T4/TB34	HT60	TD08	RHF55		KP35	S3B
TBP4	HX30/30W	TD08S	…		BV39/KP39	S400
TA31/TA34	HX35/40	TE06			BV43	S410
TA45	HX50/HX50W				…	S4D
TA51	HX55					…
T25 carbon seal	HX80/HC5A
T28 carbon seal	…
TV61
TV81
GT12
…
